E-Blocks
Styroforms E-Blocks System is a light weight polystyrene cement block which has been developed to compliment the construction industry. These innovative blocks are manufactured from Recycled Expanded Polystyrene (EPS) also known as Styrofoam or Styrotex, Cement and Proprietary Agents. Styroforms E-Blocks are
internationally used as it promotes the protection of the environment by reusing an other wise waste product, thus reducing our Carbon Footprint.
What Makes E-Blocks
A Smarter Choice For Construction?
- E-Blocks are a stay-in-place Insulated Concrete Form (ICF) System that is structurally strong.
- Insulated concrete forms are energy-efficient decreasing energy consumption by up to and above 50%.
- Insulated concrete forms are sound absorbent
- Insulated concrete forms are made from 85% recycled materials making them a sustainable product.
- Reduces HVAC operating costs between 30%-60%
- ICF structures are much more comfortable, quiet and energy-efficient than those built with traditional construction methods.
Experience the Strength & Efficiency of E-Blocks Today!
The Resilient Structural Design
Of Styroforms E-Blocks

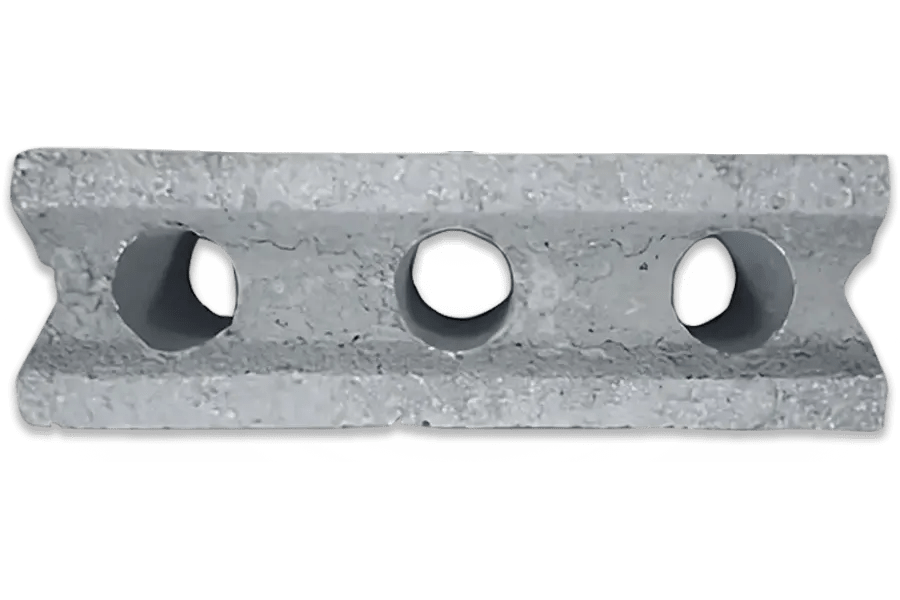

Styroforms E-Blocks are designed with horizontal and vertical channels which become a structural skeleton when concrete is placed in accordance with the Manufactures specifications. The Load Bearing capabilities can be transferred to the Foundation via the vertical cores while the horizontal channels control the wall system from Lateral Forces.
Styroforms E-block can be installed using traditional mortar or an expanding foam adhesive, due to the high styrofoam content, the adhesive creates a bond between the blocks when stuck together and because of the nature of the system, keeping blocks plumb and aligned can be attained with minimal bracing. Styroforms E-Blocks design allows for Structural Concrete to be placed with a systematic methodology.
E-Blocks Are Available In Three Sizes

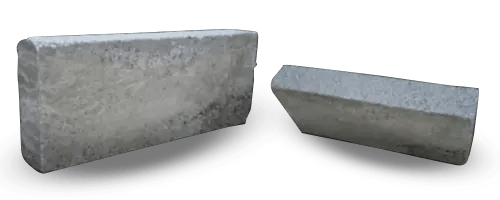

4 Inch E-Block
These blocks are designed for light load bearing systems and are solely for internal use such as partition walls and minor household projects.
Dimensions: 24” Long x 4” Wide x 10” High
Block Weight: 10lbs/4.5kg
Amount Per Pallet: 100
Weight Per Pallet: 1025lbs/465kg

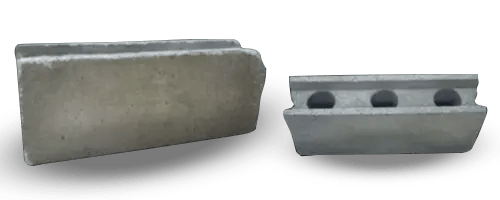

6 Inch E-Block
6 Inch E-Blocks are designed to be used with load bearing systems and can be used for both internally and externally.
Dimensions: 24” Long x 6” Wide x 10” High
Block Weight: 12lbs/5.4kg
Amount Per Pallet: 60
Weight Per Pallet: 745lbs/338kg

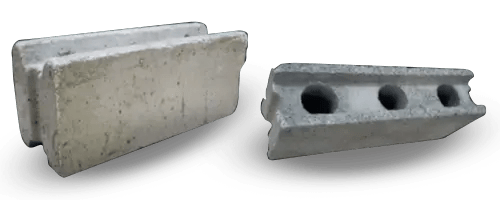

8 Inch E-Block
Designed for load bearing systems and for external uses, these are perfect for foundations, retaining walls and heavy loaded systems.
Dimensions: 24” Long x 8” Wide x 10” High
Block Weight: 20lbs/9kg
Amount Per Pallet: 50
Weight Per Pallet: 1025lbs/465kg
Styroforms E-Blocks (ISIPCF) Compared To Concrete Blocks
6 Inch E-Block
Dimensions: 24″ x 10″ x 6″
Square Feet: 1.67
Quantity Needed To Build A 20″ x 40″ x 10″ House: 720 Blocks
Volume of Cement Need for Pouring 10sq ft System: 12 Gallons

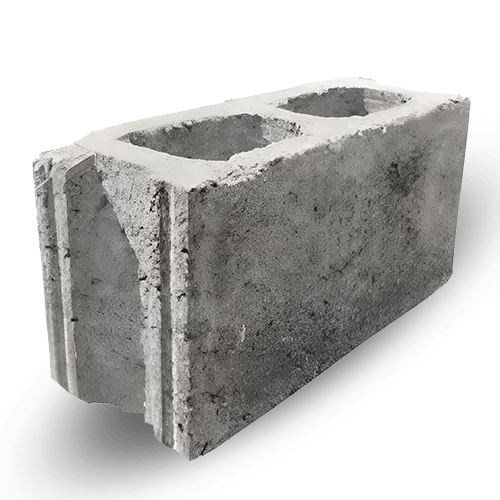

6 Inch Concrete Block
Dimensions: 16″ x 8″ x 6″
Square Feet: 0.89
Quantity Needed To Build A 20″ x 40″ x 10″ House: 1,350 Blocks
Volume of Cement Need for Pouring 10sq ft System: 14 Gallons
Versatile Installation Methods
Choose From Traditional Mortar
Or Faster EPS Adhesive
The E-Block (ISIPCF) is designed for versatility, allowing builders to use traditional cement or mortar for installation. However, thanks to the integration of expanding polystyrene (EPS) in its composition, the E-Block can also be installed using a specialized foam adhesive.
This adhesive is engineered for the construction industry, ensuring strong adhesion to various surfaces like wood, concrete, foam board, and ISIPCF blocks. The EPS component enhances the bond, making installation faster, stronger, and more efficient. By eliminating the need for mortar, this method streamlines the block-laying process, reducing mess and improving overall ease of use.
Benefits Of Styroforms E-Blocks
of Use
Design
Resistant
Transport
Effective
Styroforms E-Blocks In Use
See how Styroforms E-Blocks are being used in the construction industry. From residential homes to large-scale commercial projects, E-Blocks are revolutionizing modern construction with their durability, energy efficiency, and ease of installation.

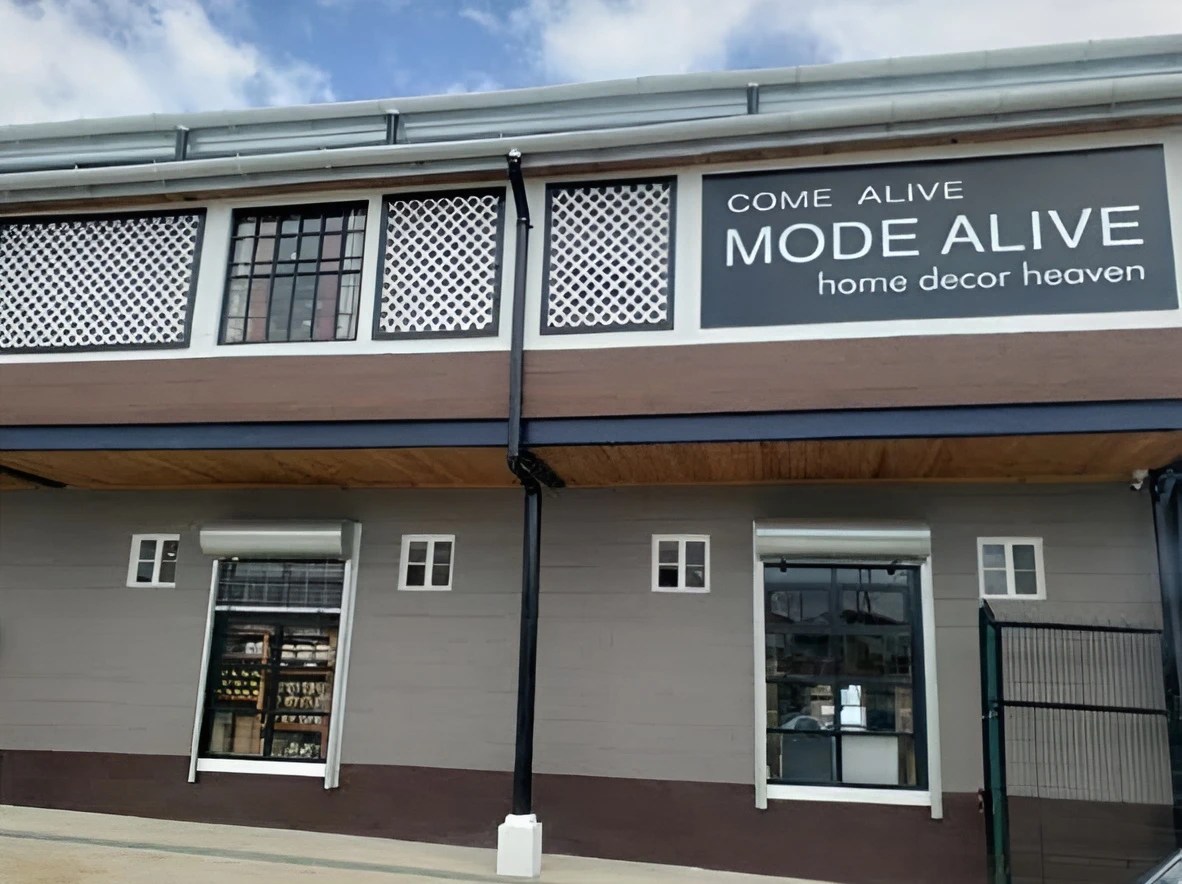

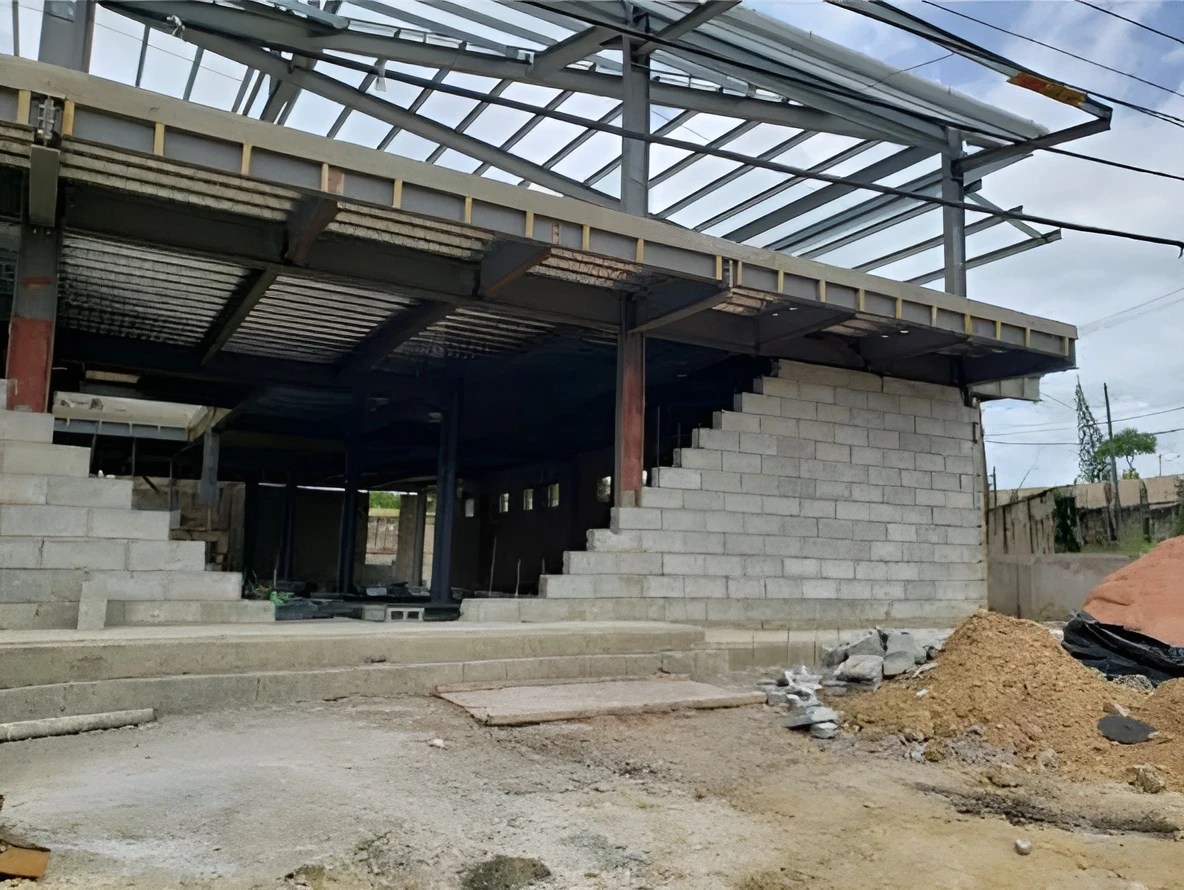

Come Alive, Mode Alive Building

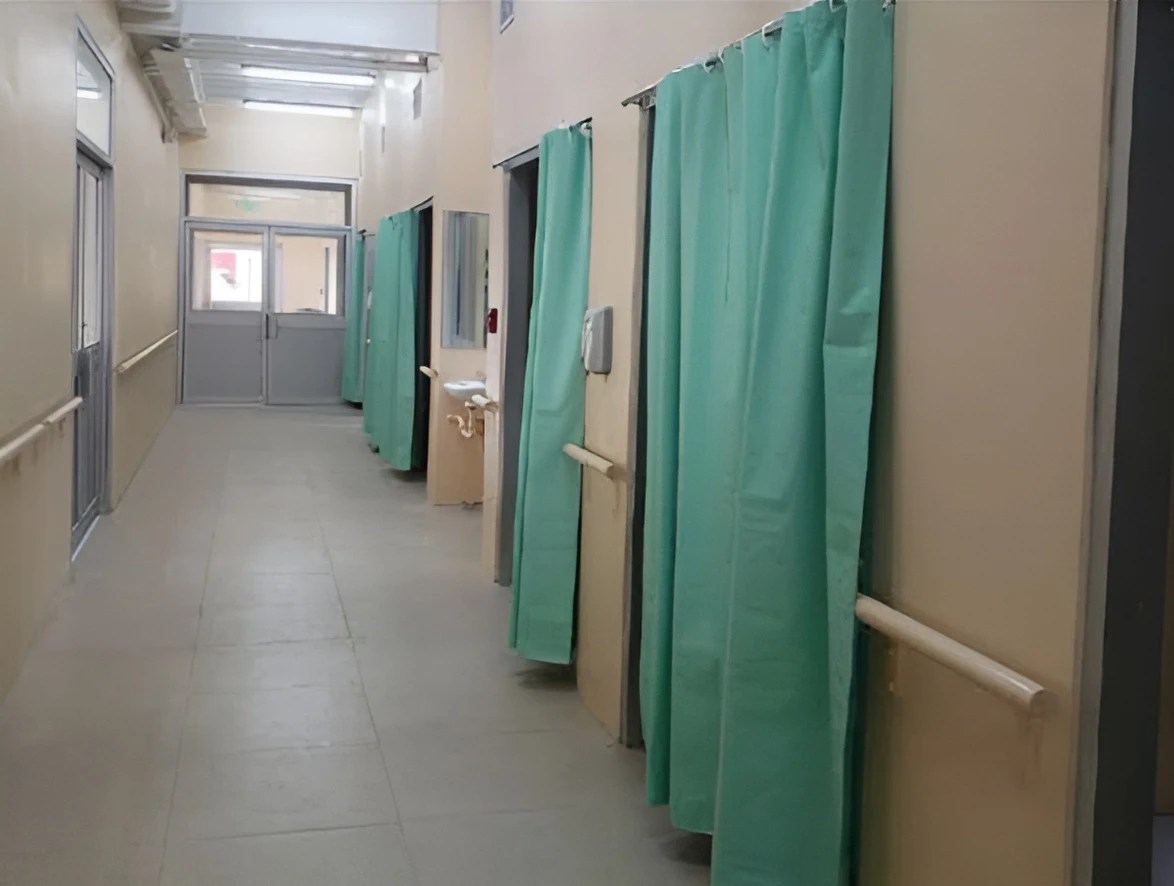

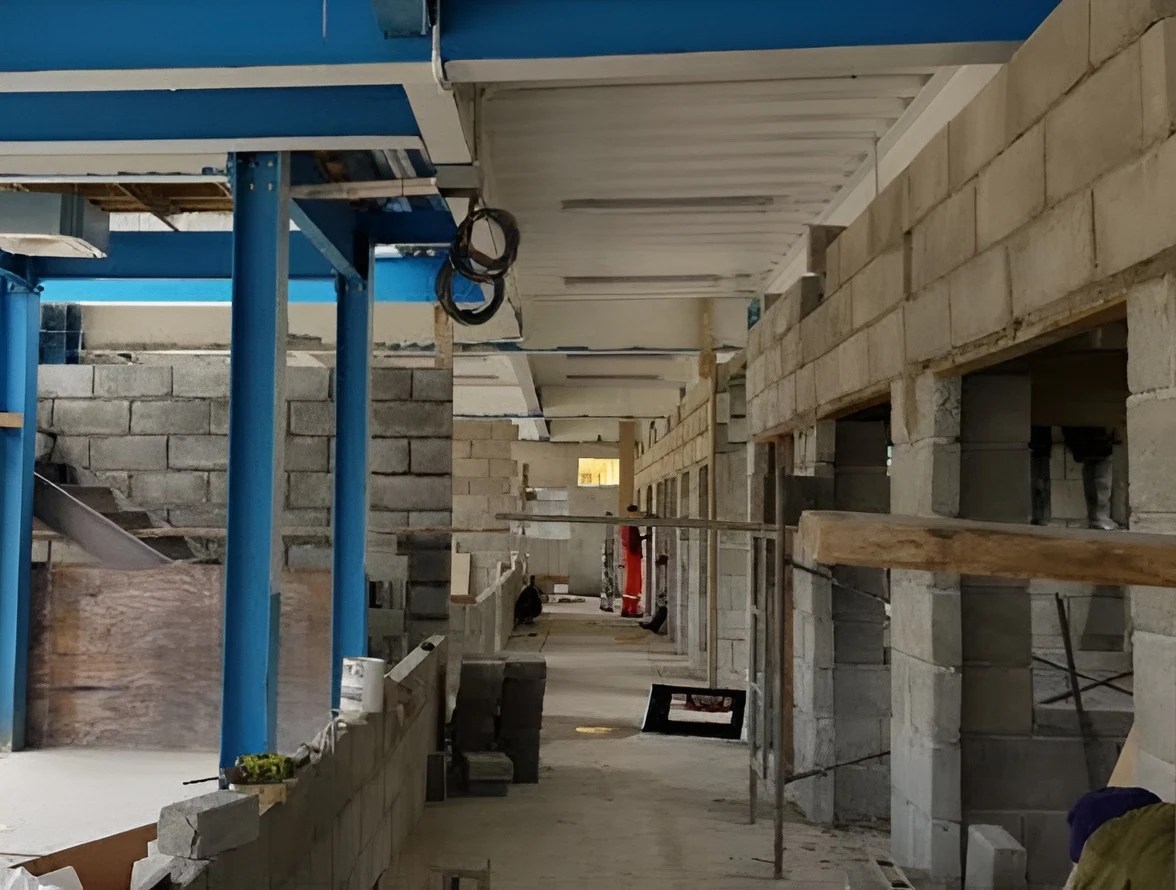

Good Health Hospital
Residential Building With E-Blocks
Mt. Hope Retaining Wall
Styroforms E-Block: Technical Specifications
- Compressive Strength – 0.8 (N/ {mm} ^2)
- Thermal Conductivity – 0.094 (W⁄(m.K))
- Thermal Insulation – Steady State an R-Value of 22 and a Dynamic R-Value of 40, the Styrofoam’s E-Block surpasses traditional Wall Values by reducing the Heat Transfer by up to 40%.
- Dry Density – 300 (kg⁄m^3)
- Water Absorption –0.231 (kg⁄m^2 ) x min0.5
- Flexural Strength – 0.62 (N⁄〖mm〗^2)
- Fire Classification – El240, Flame-Spread Rating of Zero per ASTM E84. 5,600 Degrees F, this Block typically has a 4 hour Fire Rating.
- Acoustic Insulation – The Acoustic Insulation of a Styrofoams “e-blocks” is 54.7 dB producing minimum sound transmission.
Ready to Build Smarter? Get Started With E-Blocks Today!
Experience the benefits of energy-efficient, cost-effective, and easy-to-use construction. Contact us to learn more or find out about Styroforms E-Block training.
